Description

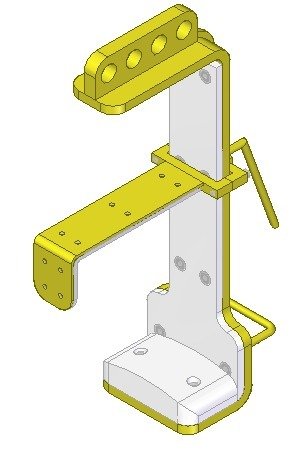

A Flywheel Lifting Tackle is a custom lifting device used to safely lift, transport, and position engine flywheels during assembly, maintenance, or overhaul. It is designed to attach securely to the flywheel without causing damage and to keep the load balanced during lifting.
Typical Features
- Central lifting eye for crane or hoist connection
- Mounting plate matched to the flywheel bolt pattern
- High-strength mounting bolts
- Stiffening ribs or support brackets (if required)
- Safety factor typically 4:1 or higher
- Clearly marked Safe Working Load (SWL)
Typical Design Parameters
- Flywheel weight: (e.g., 150 kg, 300 kg, 500 kg Up 10 Ton)
- Outside diameter (OD)
- Bolt Circle Diameter (PCD)
- Number and size of mounting holes
- Center bore diameter
- Required lifting orientation (vertical or horizontal)
- Available headroom
